Item number: BS1XX1404GP
DIY Set Small

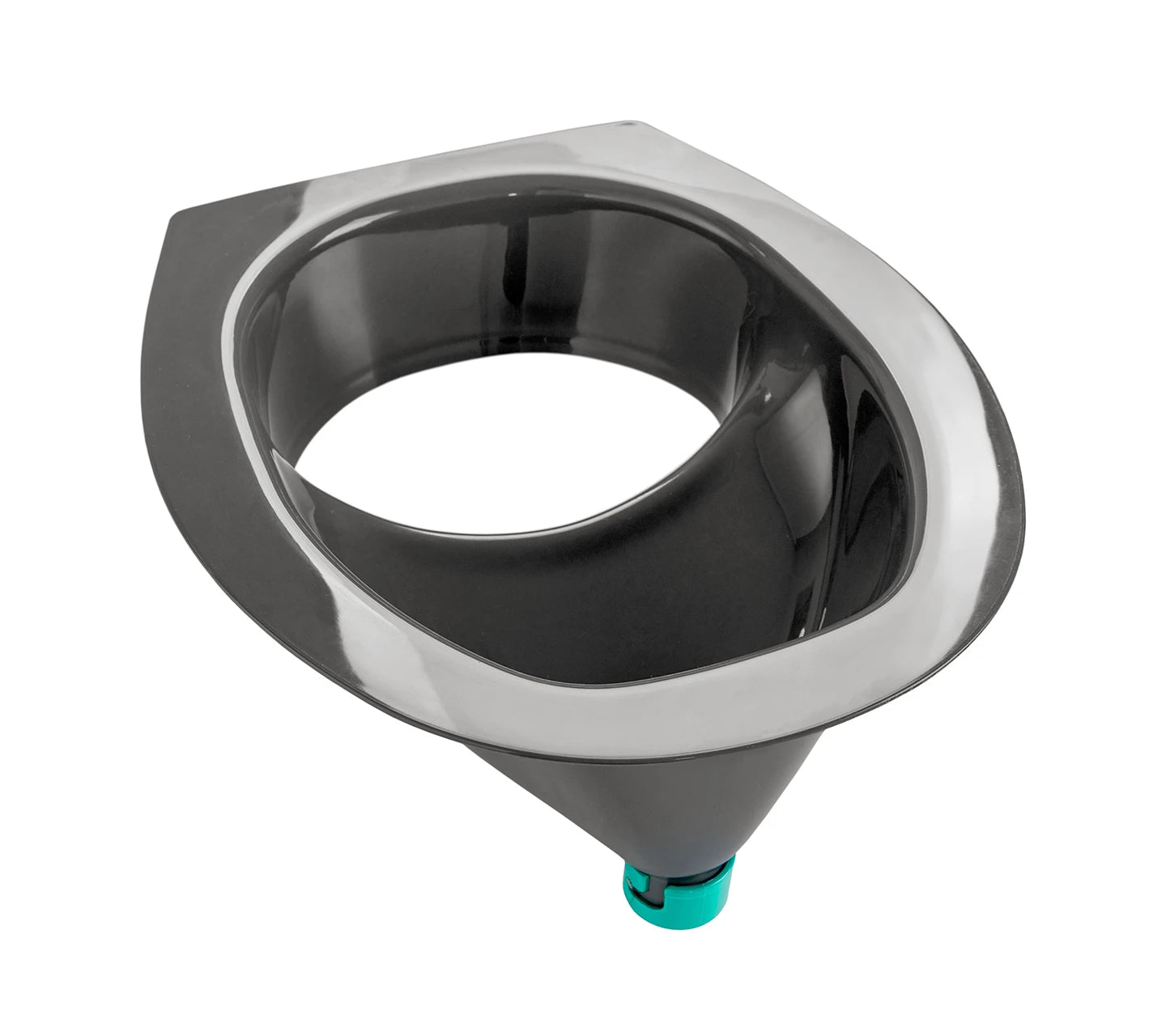

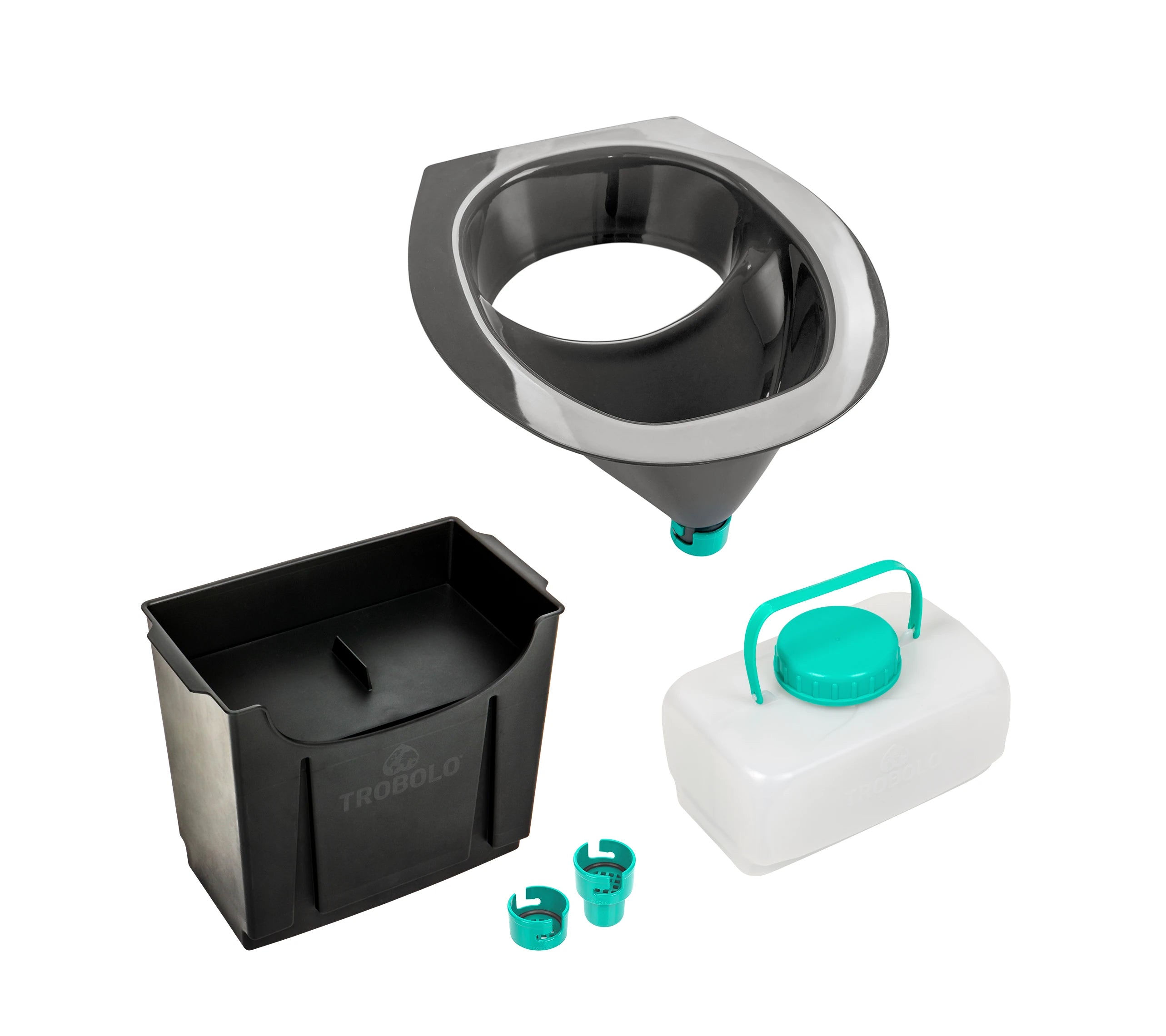

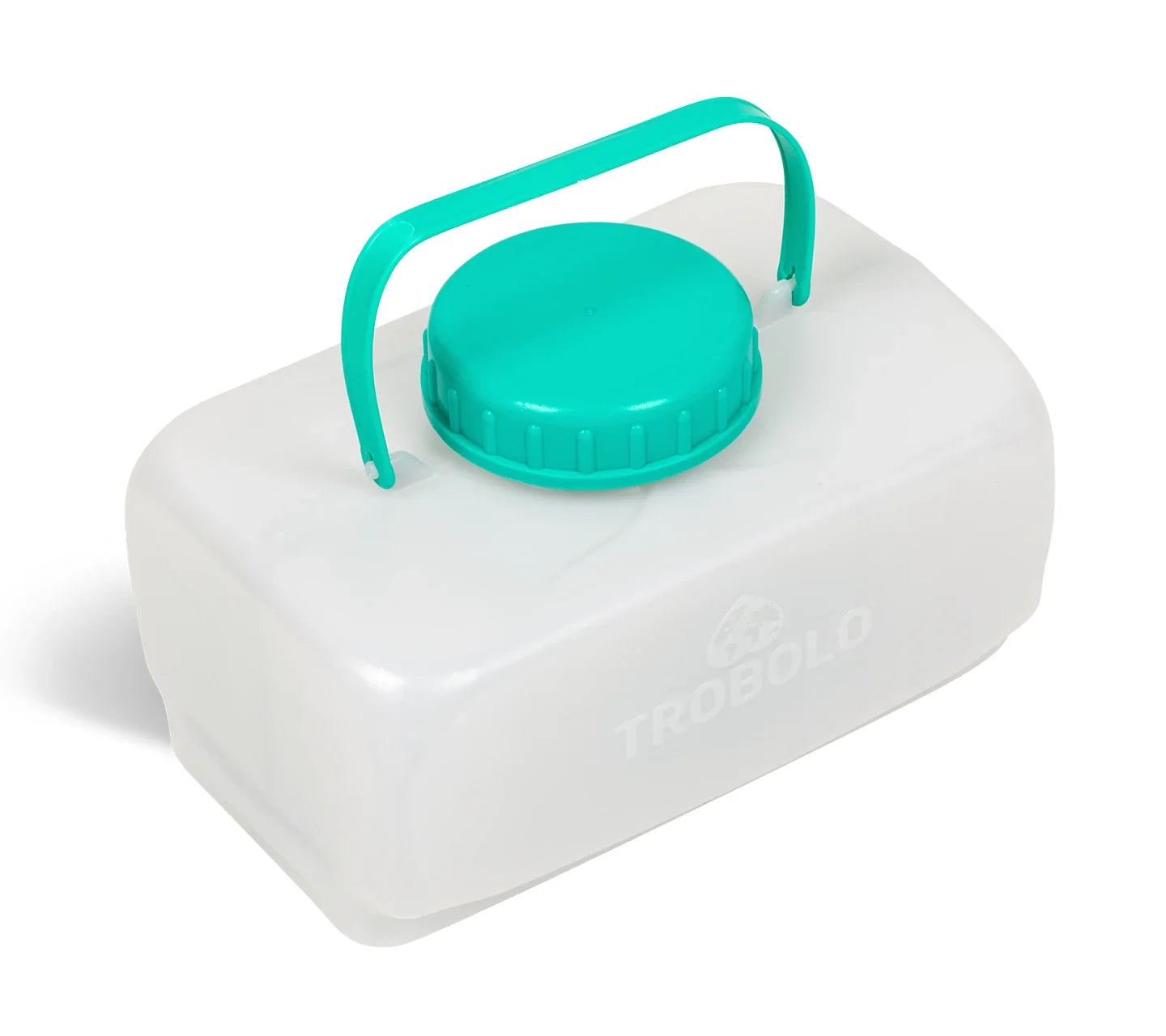

Our DIY set for the self-construction of your composting toilet. The set consists of our composting toilet insert in grey as well as a solids container (1.7 gal) and a liquids container (1.2 gal).
Description
- DIY set for building your own composting toilet
- Enables easy disposal of toilet waste
- Separation insert with unique adapter system
- Air- and liquid-tight sealable containers
- Easy transport of the containers thanks to carrying handles
- Easy and hygienic cleaning of all components
- Compatible with any standard toilet seat
- Material separating insert: polypropylene, 100% recyclable
Dimensions & weight
Height 6.7 | Depth 14.8 | Width 12.7

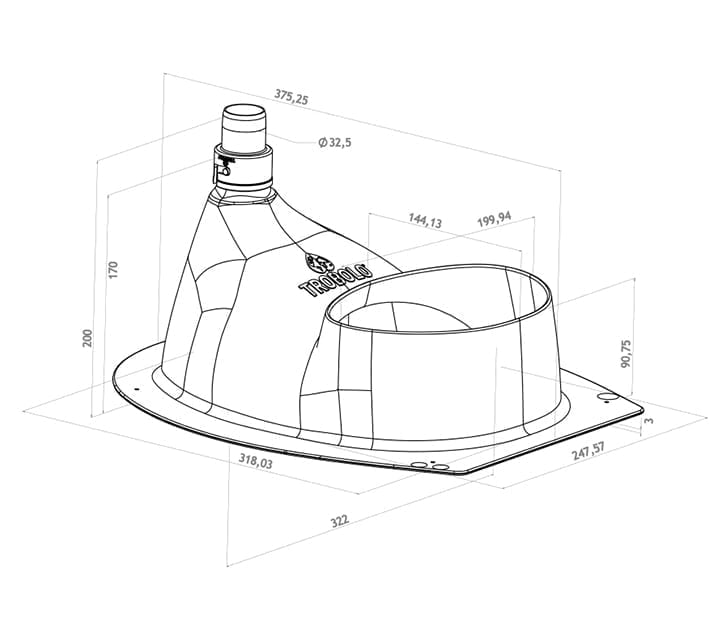

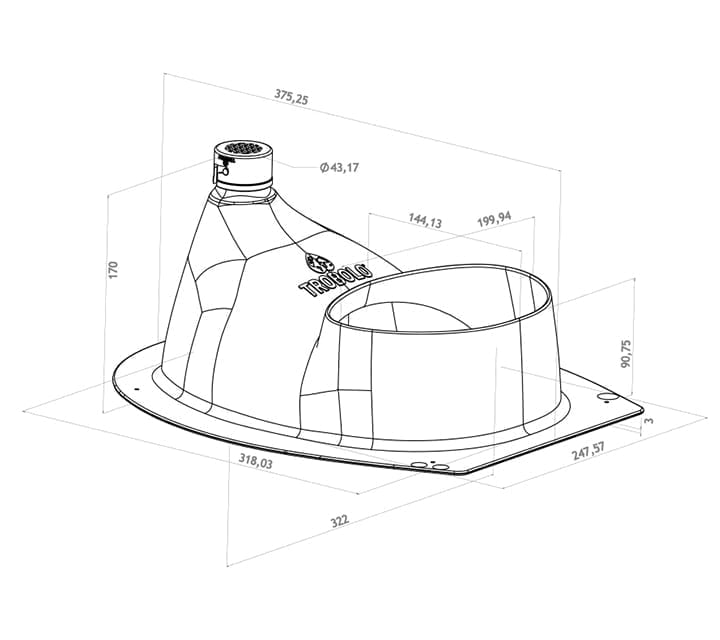

Inner diameter composting toilet insert in inch:
Longitudinal 12.2 | Transverse 9.5
Length 6.4 | Width 10.2 | Height 6.1
Dimensions solids container (1.7 gal) in inch:
Length 11.9 | Width 6.5 | Height 9.9
Scope of delivery
1x Cutting template

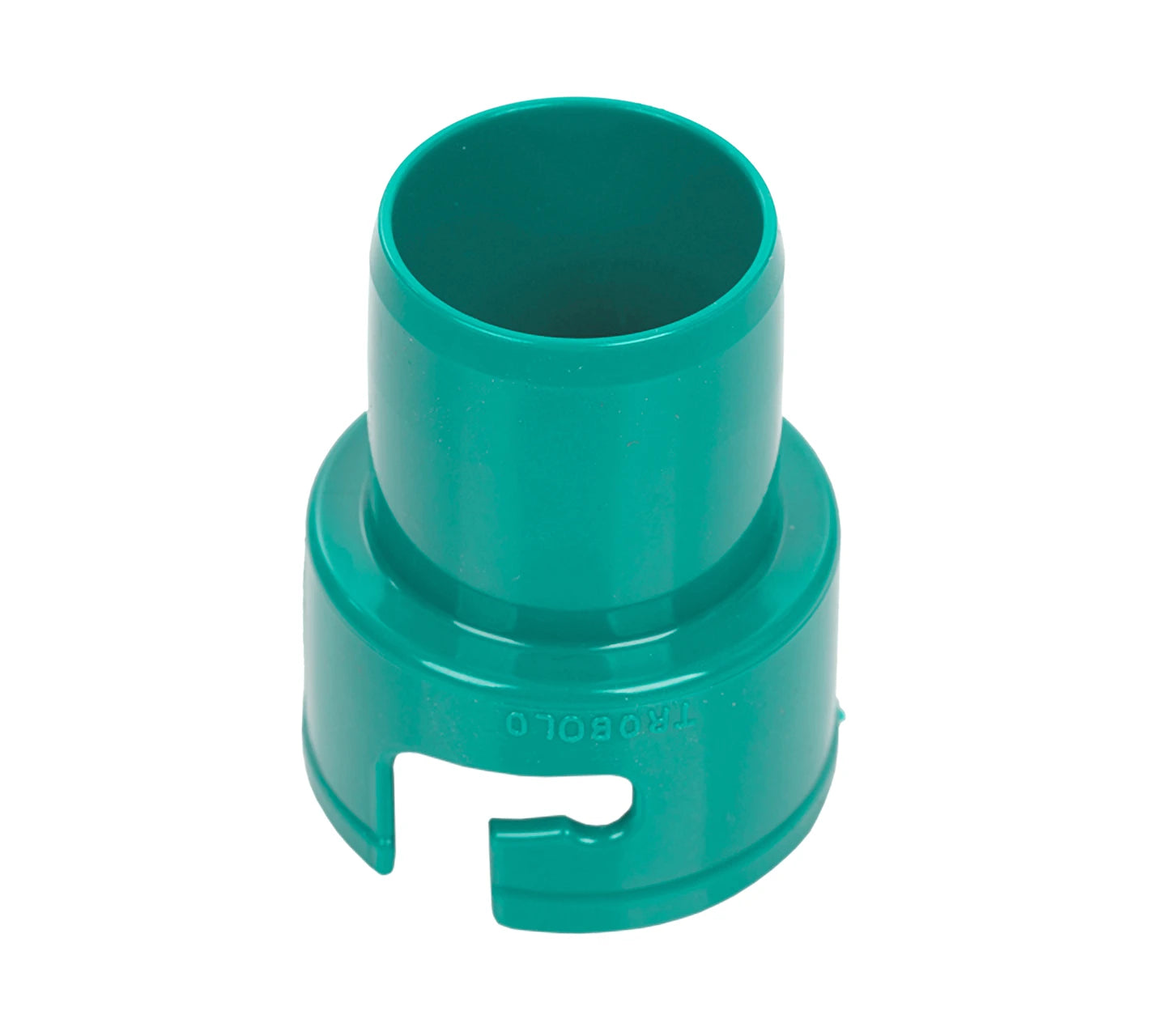

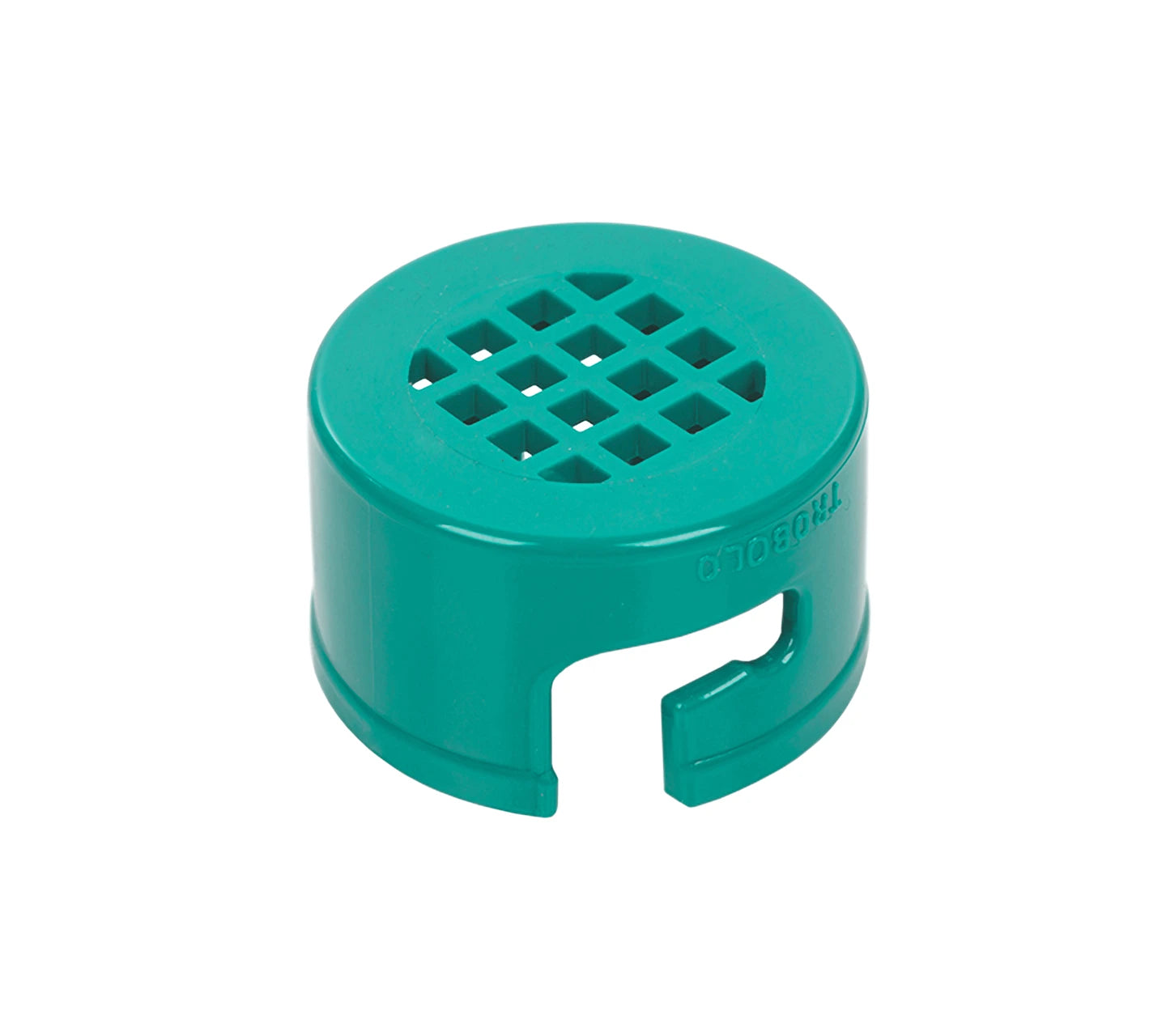

1x Filter screen and hose connection with integrated filter screen for DN 32

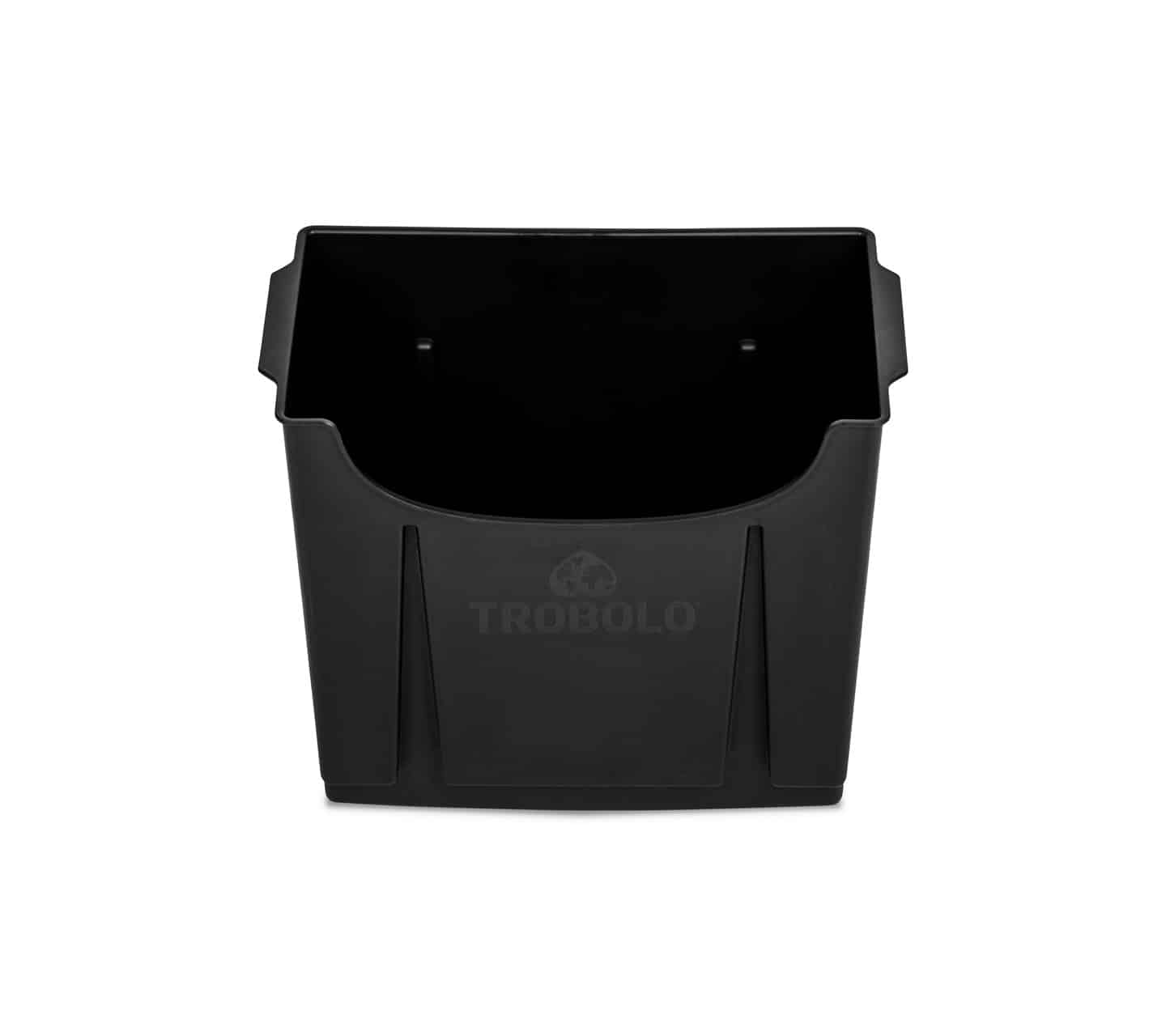

1x Solids container (1.7 gal)
MAKE IT FIT
Custom planning with our small TROBOLO DIY Set
You can plan and equip your DIY composting toilet with a 1.7 gal solids container as required.
For a 0.6 inch thick body, for example, the external dimensions are 15.6 x 13.4 x 13.4 inch when using the 1.7 gal solids container.
For the internal dimensions of your composting toilet, you should calculate at least 14.4 x 12.2 x 12.1 inch.
Would you like to build your own composting toilet?
Here you will find useful tips on how to build your own composting toilet, including detailed instructions.
This is how our customers rate TROBOLO
4,78 ExcellentRebecca W.
Rebecca W.
Ann H.
Chris P.
Frequently Asked Questions
Here you will find short and clear answers to questions we are frequently asked.
If you have any other questions or would like detailed advice on your individual situation, please feel free to send us an e-mail at hello@trobolo.us.
How do I use a TROBOLO?
Using a TROBOLO differs little from using a conventional toilet. The sitting position is identical to that of a regular toilet – this applies to both men and women. Thanks to the contact-free separation system the body only touches the toilet seat. Merely urinating while standing should be avoided as the urine cannot be fully separated in this case.
Are odors generated during usage?
Since unpleasant odors only develop when faeces come into contact with urine, the TROBOLO separation system prevents a mixing of the excretions. Remaining odors and any arising moisture are also absorbed by litter which is not required in a TROBOLO with an electric exhaust system.
How do I empty my TROBOLO?
All TROBOLO models can be conveniently opened from above to remove the two separate containers located inside. After opening the TROBOLO, the inside containers are sealed tightly with the help of the closures through a simple pressing or screw mechanism, which renders them air- and liquid-tight. The final step is to remove the containers which can then be transported to the emptying location.
What is the function of the separation system?
By separating the excretions, odors are reduced to a minimum and the subsequent disposal of toilet waste is made easier. Unpleasant odors arise only when urine and faeces are combined which is why it is possible to do without toilet chemicals that are harmful to the environment.
